1300系列轴测量仪

概述

Adcole 1300系列是严苛制造环境中实现高精度轴类测量的高速解决方案。该系列量具专为生产线100%全检环境设计，满足交通运输、航空航天及电动汽车（EV）生产等行业的严苛质量标准，具备卓越的速度、灵活性和精度。对于需要严格几何公差的零件，1300系列量具确保每个部件均符合严苛规格要求。

Adcole 1300系列测径仪区别于其他轴类测量系统的核心优势在于其水平式设计，可实现无缝在线机器人装载，高效集成至自动化生产线。此外，通过配备2至28个可定制从动探头（具体数量取决于型号及轴体复杂度），在保证精度的同时显著提升测量吞吐量。每个跟随探头每转可采集3,600个数据点（0.1º），具备0.00001º的角分辨率和0.50微米的径向精度。这种速度、精度与可配置性的结合，使1300系列成为大批量高精度制造环境的理想选择。

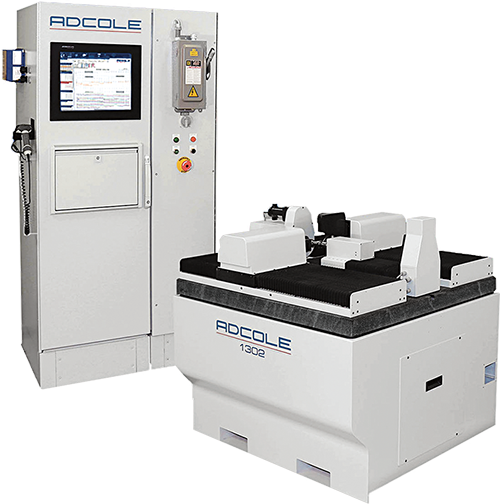

1302：紧凑型轴规

The Adcole Model 1302 is purpose-built for measuring shafts under 12 inches in length, making it ideal for camshafts, sliding camshaft elements, and other complex cylindrical components. This compact, horizontal coordinate measuring machine (CCMM) features a dual-head configuration, enabling simultaneous measurements that significantly reduce cycle times.

Engineered for high-precision applications, the Model 1302 delivers sub-micron accuracy and repeatability, ensuring reliable performance in both production and quality control environments.

规格

Swipe to Scroll

	1302
精度规格
径向精度 ⁱ	±0.5 µm
径向分辨率	0.016 µm
轴向精度	±2 µm ( 100 mm 范围内 )
角分辨率	<0.036 角秒 (<0.00001°)
主轴总跳动	<0.15 µm
一般规格
最大旋转速度	40 RPM
摆动直径 ⁱⁱ	178mm (7")
零件重量最大值	36 kg (80 lb)
部件长度最大值	305mm (12")
基准量规尺寸
量规高度	1,214mm (47.81")
轨距	1,156mm (45.50")
量规深度	1,111mm (43.75")
标称重量 ⁱⁱⁱ	2,270 kg (5,000 lb)

Swipe to Scroll

i 温度20±1℃，相对湿度40%-60%，压力86KPa-106KPa。

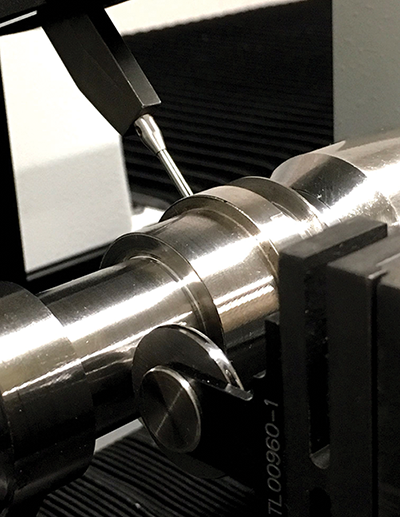

ii 105毫米（4.13英寸）带Camtracker选项
iii 重量不含附件及机柜

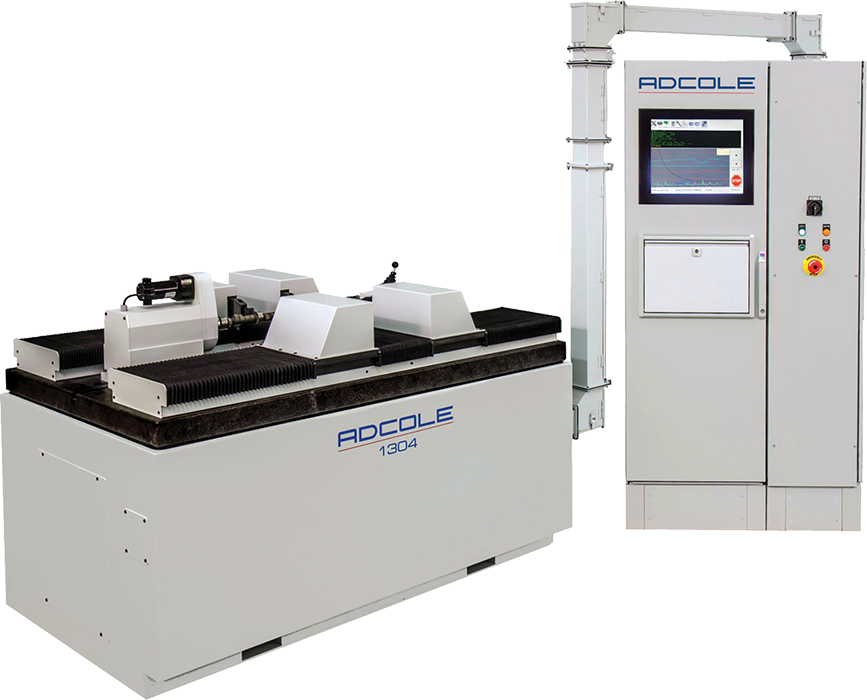

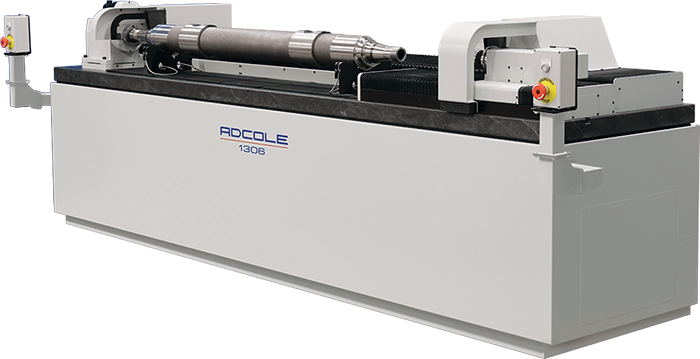

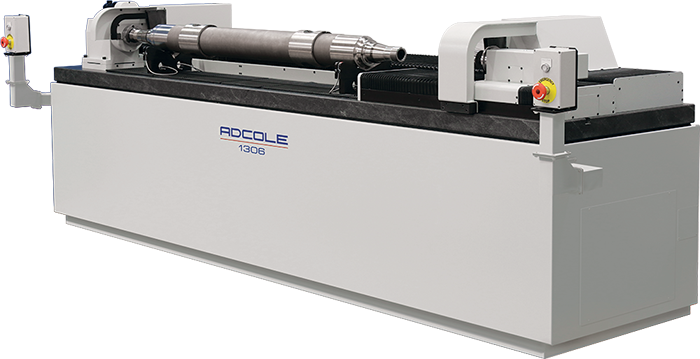

1304/1306：多头高吞吐量轴径测量仪

For shafts that exceed the capacity of the Model 1302, the Adcole Models 1304 and 1306 are the next evolution in the horizontal 1300 series—designed to meet both in-line and audit shaft measurement needs.

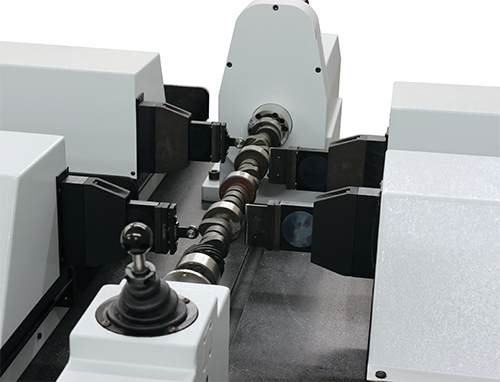

These gages feature two or four independent measuring heads that can traverse beyond the headstock and tailstock, significantly reducing fixture costs and enabling efficient part loading and unloading. Boasting high throughput and fast cycle times, the 1304 and 1306 models also offer an optional programmable power tailstock, ideal for robotic or gantry loading in high-volume production environments.

Key capabilities include:

Measurement of shafts up to 2286 mm (90 inches) in length
Support for parts up to 180 kg (400 lbs)
Durable flat and disc carbide follower tips
Axial accuracy of ±2 µm over 100 mm

Whether you’re scaling up for longer, heavier shafts or optimizing for automation, the 1304 and 1306 deliver precision, flexibility, and performance.

规格

Swipe to Scroll

	1304 (24")	1304 (42")	1306 (24")	1306 (90")	1306 (96")
精度规格
径向精度 ⁱ	±0.5 µm
径向分辨率 ⁱ	0.016 µm
轴向精度	±2.0 µm
角分辨率	<0.036 角秒 (<0.00001°)
主轴总跳动	<0.1 µm
一般规格
从动头	4		2
摆动直径	190mm (7.5")		178mm (7")	350mm (13.78")
零件重量最大值	36 kg (80 lb)		45 kg (100 lb)	180 kg (400 lb)
部件长度最大值 ⁱⁱ	965mm (38")	1,520mm (59.8")	609mm (24")	2,286mm (90")	2,438mm (96")
基准量规尺寸
量规高度	1,239mm (48.8")		1,016mm (40")	1,283mm (50.5")
轨距	1,708mm (67.25")	887mm (34.9")	1,740mm (68.5")	3,658mm (144")
量规深度	1,111mm (43.75")		826mm (32.5")	1,016mm (40")
标称重量ⁱⁱⁱ	1,708 kg (3,760 lb)	2,409 kg (5,300 lb)	1,814 kg (4,000 lb)	5,400 kg (12,000 lb)

Swipe to Scroll

i 温度20±1℃，相对湿度40%-60%，压力86KPa-106KPa。
ii 最大工件长度为近似值。实际长度取决于中心夹具类型、工件中心孔配置、清除客户工件所需的TS行程量等因素
iii 重量不含附件及机柜

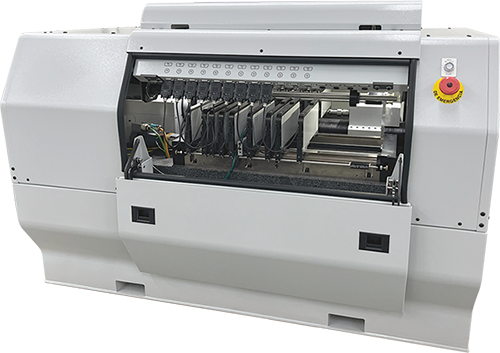

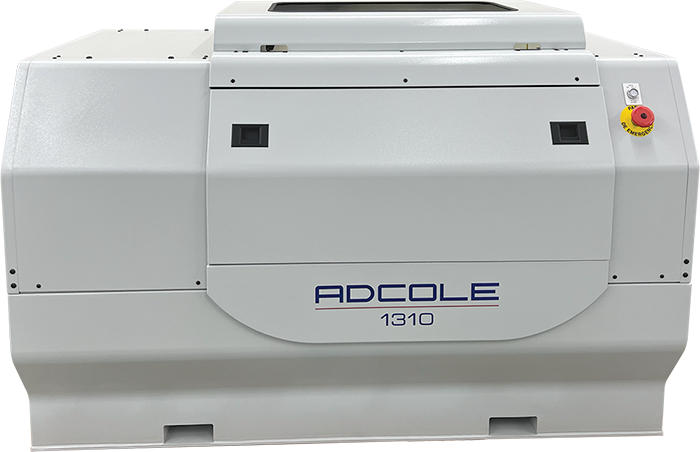

1310：灵活在线自动化轴径测量仪

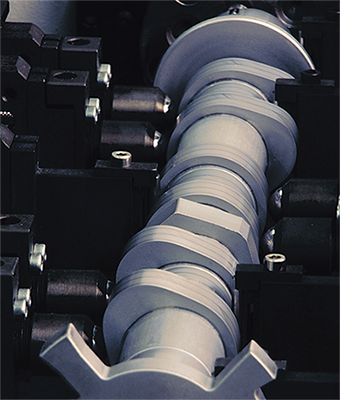

Engineered for in-line production environments, the Adcole Model 1310 delivers industry-leading shaft measurement speed with support from up to 28 followers. When integrated into an automated process cell, this advanced gage can inspect up to 200 parts per hour—while maintaining the sub-micron accuracy that defines every Adcole Shaft Measuring Gage.

With the ability to fully measure a camshaft in under 20 seconds (excluding loading and unloading), the Model 1310 accommodates parts up to 609 mm (24 inches) in length and a 102 mm (4 inches) swing diameter.

Key features include:

Modular gage design for simplified maintenance and fast part changeovers
Multi-part programming with automatic part detection and sequence selection
Minimized downtime by eliminating the need for frequent reprogramming or retooling

Whether you’re optimizing for speed, precision, or flexibility, the Adcole Model 1310 sets the standard for automated shaft measurement.

规格

Swipe to Scroll

	1310
精度规格
径向精度 ⁱ	±0.5 µm
径向分辨率	0.016 µm
轴向精度	±2 µm
角分辨率	<0.036 角秒 (<0.00001°)
主轴总跳动	<0.1 µm
一般规格
从动头	最高28
从动行程	51mm (2")
摆动直径	102mm (4")
零件重量最大值	25 kg (55 lb)
部件长度最大值 ⁱⁱ	609mm (24")
基准量规尺寸
量规高度	2,004mm (80")
轨距	887mm (34.9")
量规深度	1,195mm (47")
标称重量ⁱⁱⁱ	2,160 kg (4,760 lb)

Swipe to Scroll

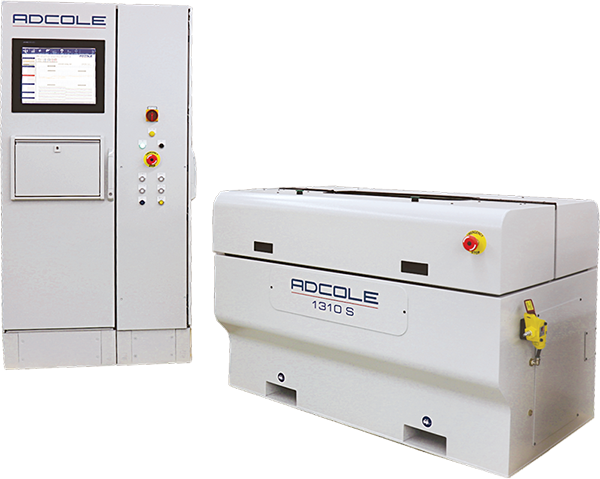

1310-S：在线自动化轴规

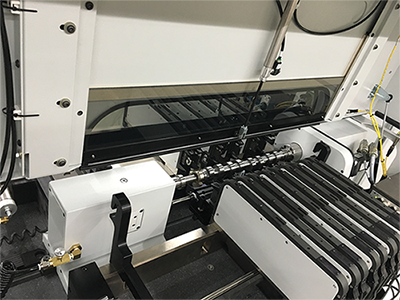

The Adcole Model 1310-S is a horizontal CCMM designed for single part-length measurement applications. Built with the same robust capacity as the standard Model 1310, the 1310-S offers a streamlined feature set, making it a value-oriented solution for manufacturers focused on measuring a single part type.

Customers can enhance the system with an optional linear scan capability, enabling the measurement of multiple cuts on complex parts. The gage features a fixed headstock and a pneumatic tailstock with 30 mm of travel (with an optional upgrade to 60 mm), supporting efficient and repeatable part loading.

Ideal for operations seeking high-precision measurement without the need for multi-part flexibility, the 1310-S delivers reliable performance at a lower cost of ownership.

规格

Swipe to Scroll

	1310-S
精度规格
径向精度 ⁱ	±0.5 µm
径向分辨率 ⁱ	0.016 µm
轴向精度（通过LVDT 测量) ⁱ	±2 µm
角分辨率	<0.036 角秒 (<0.00001°)
主轴总跳动	<0.1 µm
一般规格
从动头	最高24
从动行程	51mm (2")
摆动直径	102mm (4")
零件重量最大值	25 kg (55 lb)
部件长度最大值 ⁱⁱ	609mm (24")
基准量规尺寸
量规高度	2,229mm (90.5")
轨距	887mm (34.9")
量规深度	1,195mm (47")
标称重量 ⁱⁱⁱ	2,380 kg (5,250 lb)
